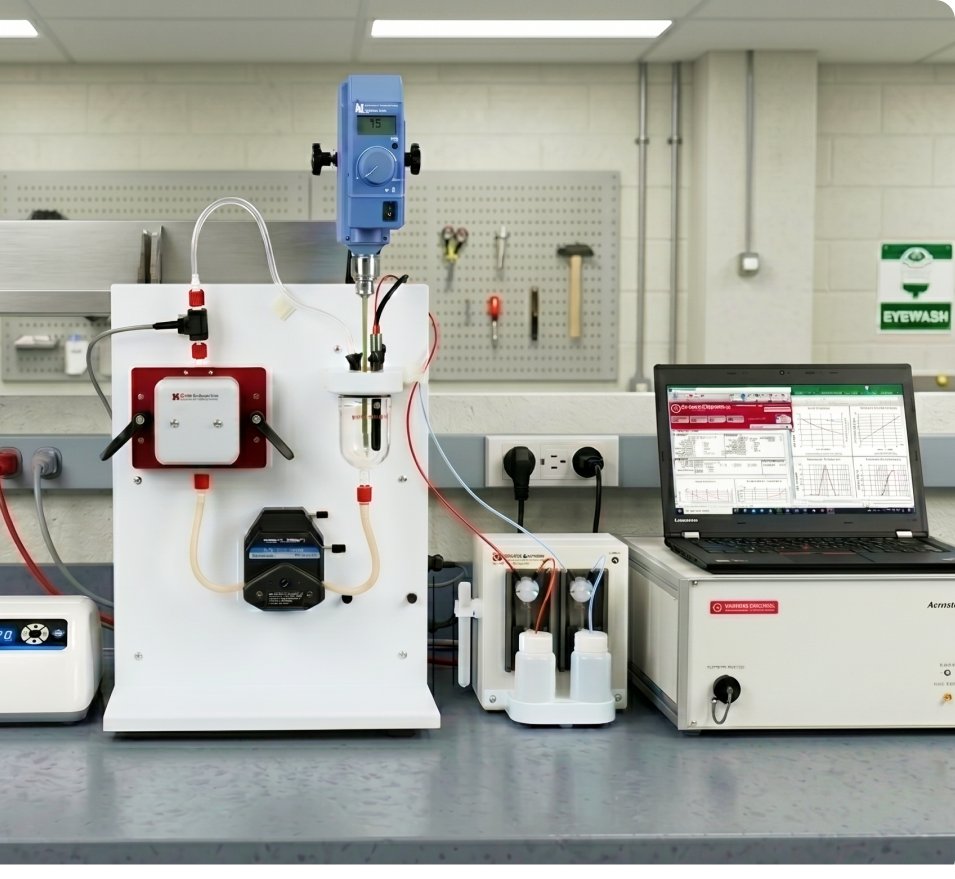

The Acoustosizer IIx

The new Acoustosizer IIx provides thorough characterization of concentrated colloidal dispersions. Directly measuring particle size, zeta potential, pH, conductivity, and temperature, it furnishes the most comprehensive analysis available in a single, turnkey instrument. Based on a flow-through sensor design, the Acoustosizer IIx can be used in a laboratory batch analysis mode or connected directly to a process slipstream. Built-in syringe pumps provide automated potentiometric and volumetric titration capabilities for accurate isoelectric point and surfactant addition determination.

Standard Features and Benefits

Particle Size and Zeta Potential in concentrated colloids and emulsions
Modular design ideal for both laboratory and pilot plant operations
Flow-through sensor for continuous monitoring of colloid processing
On-line capability using sensor connections for external flow loop
Sample volumes as small as 20 ml
Broad particle size range: 0.01 to 100 microns combining electroacoustic and attenuation spectroscopy techniques
Fully automated potentiometric and volumetric titration
No moving parts in the sensor
Automatic removal of background electrolyte signal for high accuracy iso-electric point determination
High voltage pulsed electric field provides excellent signal to noise ratio
Uses electrolyte calibration standard eliminating the need for colloid based zeta potential and particle size calibration standards
Advanced size analysis __ bimodal, normal & log normal size distributions
Wide temperature and viscosity range
Powerful, easy-to-use Microsoft Windows 11 based software with standard data reports in Microsoft Excel format
